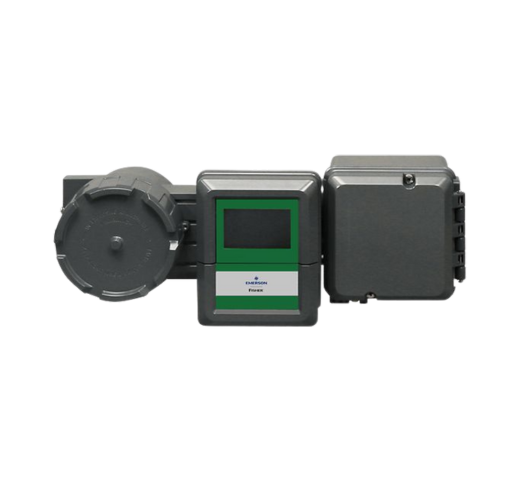

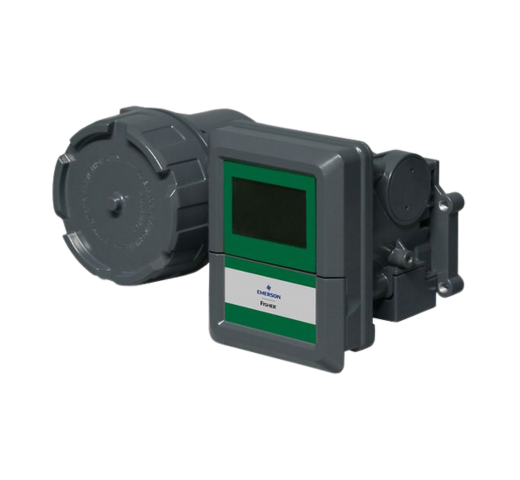

Fisher™ FIELDVUE™ DPC2K Digital Process Controller

Technical Data

Instrument Power:

• 9 to 28 VDC at 1 Watt nominal

Certifications:

• CSA & cSAus: Type 4X, IP66
• ATEX & IECEx: IP66

Communication Protocol:

• Ethernet: Modbus TCP, HART-IP (Common commands and Universal commands)
• Serial: Modbus RTU
• Baud: Configured 9600 to 256,000 baud. Default 115,200

Analog Inputs:

• (2) 4-20 mA

Analog Output:

• (1) 4-20 mA

Pressure Sensor Option: Sealed Gauge:

• 2.1, 6.9, 20.7, 41.4, 103 bar (30, 100, 300, 600, 1500 psi) ranges available

Pneumatic Output:

• Single-Acting Direct

Low Bleed Steady State Air Consumption:

• At 1.4 bar (20 psig) supply pressure, 0.056 normal m3/hr (2.1 scfh), average
• At 5.5 bar (80 psig) supply pressure, 0.184 normal m3/hr (6.9 scfh), average

Supply Pressure:

• Minimum Recommended: 0.3 bar (5 psig) higher than maximum actuator requirements
• Maximum: 10.0 bar (145 psig) or maximum pressure rating of the actuator, whichever is lower
• Medium: Air or Natural Gas
• Supply medium must be clean, dry and noncorrosive

Connections:

• Supply Pressure: 1/4 inch NPT internal
• Output Pressure: 1/4 inch NPT internal
• Tubing: 3/8 inch recommended
• Vent: 3/8 inch NPT internal
• Electrical: 1/2 inch NPT internal, two conduit entries
