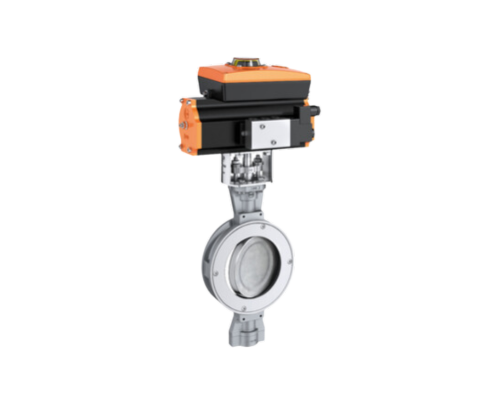

Ebro HP111 High Performance Butterfly Valve UK & Ireland

Nominal diameter: DN 50 – DN 1200
Metallically up to DN 800 max. PN 16
Face-to-face: EN 558 Series 20, optional Series 25
ISO 5752 Series 20
API 609 Table 1
Flange accommodation: EN 1092 PN 10/16/25/40 (up to DN 150)
EN 1092 PN 10/16/25 (DN 200 – DN 1200)
ASME Class 150AS 4087 PN 16/21
Flange Surface Design: EN 1092 Form A/B
ASME RF, FF
Top flange: EN ISO 5211
Marking: EN 19
Leak testing for R-PTFE Seat: EN 12266 (Leakage Rate A)
Leak testing for Inconel Seat: EN 12266 (Leakage Rate B)
ISO 5208, Category 3
Working standard: EN 593
Temperature range: –60°C to +600°C (depending on working pressure)
Vacuum: up to 1 mbar absolut

Shut-off and control of gaseous and liquid media
Disc has a double-eccentric bearing
Centering pieces can be used as an installation aid
Two seat ring systems available: R-PTFE and Inconel
Seat variants:
- Soft seating (R-PTFE) max. 230°C
- Metallic seating (Inconel) max. 600°C
- Fire-safe (PTFE/Inconel) max. 200°C –
Maintenance-free – Long service life, even at high switching frequencies
Fire safe BS 6755 part 2, API 607 5th Edition
