Fisher™ FIELDVUE™ 4400 Digital Position Transmitter

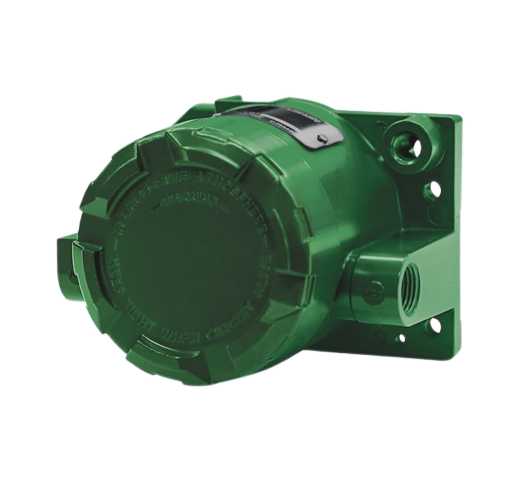

A Fisher FIELDVUE 4400 digital position transmitter senses the position of rotary or sliding-stem valves, vents, dampers, or other devices. It provides a precise non-contact feedback to indicate equipment position with a percentage (%) of span, plus an on/off indication. The 4400 provides 4-20 mA position feedback, is SIL 2 capable, and has two 1-amp NAMUR design solid-state limit switches

Make An Enquiry

Product Benefits

Easy Setup

  • Local push-button calibration for quick and straightforward commissioning.

Reliable Performance

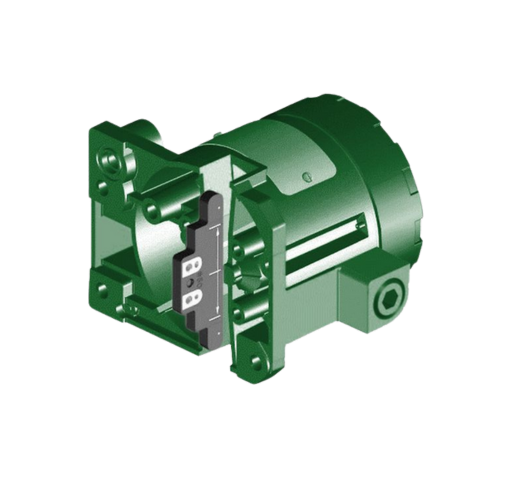

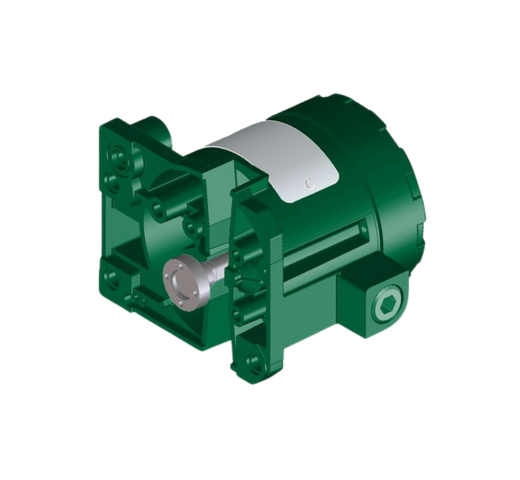

  • Proven linkageless, non-contact position sensing minimises mechanical wear for long-term reliability.

Comprehensive Valve Diagnostics

  • Monitors key performance indicators, including:
  • Cycle count
  • Time to open/close
  • Travel accumulator
  • Dwell time
  • Current valve position
  • Stroke time

Seamless Digital Integration

  • Flexible communication capabilities via FDI and EDDL technologies.

Flexible Mounting Options

  • Compatible with FIELDVUE mounting kits for versatile application and easy adaptation.

Advanced Position Feedback Capabilities

  • Supports a wide range of applications
  • Provides real-time insight into valve position
  • Delivers accurate, responsive feedback
  • Enables condition-based diagnostics for on/off valves

Technical Data

Area Classification:

  • Class I, Division 1 and 2, Groups A, B, C, D
  • Zones 1 and 2

Safety Certification:

  • SIL 2 capable

Certifications:

  • ATEX, CSA, CSAus, IECEx

Communication Protocol:

  • 4-20mA HART

Data Interface

  • Wired

Measurement Type:

  • Position

Diagnostics:

  • Yes

Mounting Type:

  • Non-Mechanical, Contactless

Power Source:

  • Loop Powered (2-Wire)

Download

Download Data Sheet
